SYNOPTIC TABLE

Recommended Aerator Types based on water volume

OUR RANGE OF AERATORS

FLOSUB

Surface aerator

The FLOSUB is
a floating surface aerator perfectly suited to freshwater ponds. Designed for use in ponds at least 60cm deep, Flosub contributes to healthy water conditions.

AQUASUB

Hydro-ejector

THE AQUASUB is
a high-performance hydro-ejector that reconciles aeration and circulation of freshwater masses. It is used for aeration and destratification of lakes, ponds and other freshwater bodies.

FLOBULL

Surface aerator

FLOBULL is
the first floating surface aerator surface aerator. Ideal for freshwater ponds with a minimum depth of 40cm, its high oxygen content in the water is 1.2 kg O2/h/kW.

FLOSTYLE

Water jets

FLOSTYLE is
a floating water jet that brings the benefits of water aeration while adding an elegant touch to your water features

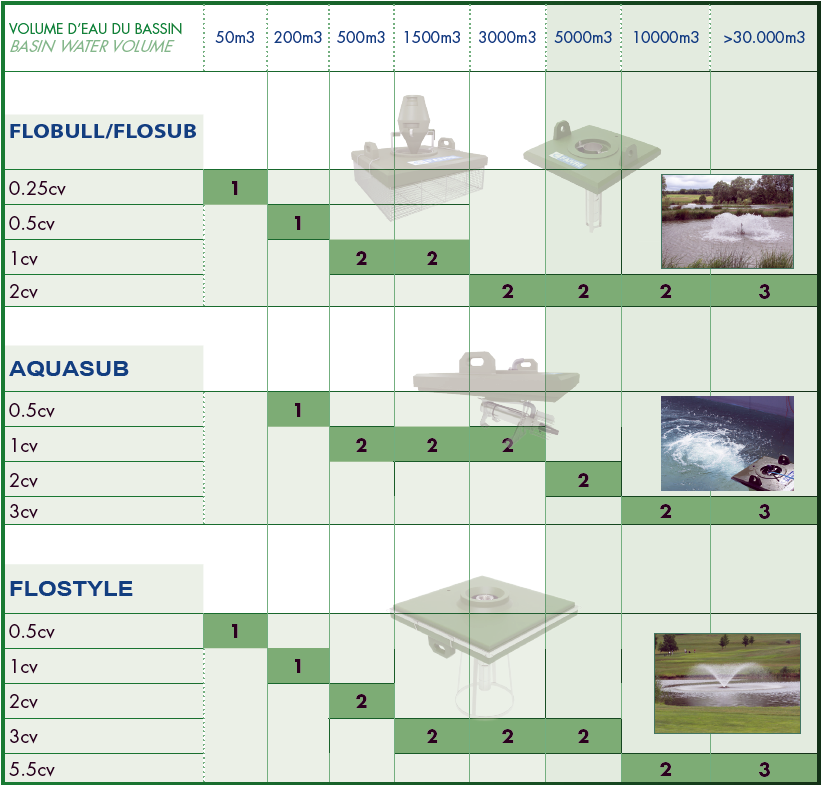

SYNOPTIC TABLE

Recommended Aerator Types based on water volume

This table is indicative, it will in no case replace a study with analysis of the body of water!

- For pools - Up to 1500m3, the choice will be Flobull, Flosub or Flostyle jets (when aesthetics are desired).
- From 1500 m3, the use of several Flobull, Flosub or Flostyle is necessary.
- Above 5000 m3, the use of several Flobull, Flosub or Flostyle combined with Aquasub is recommended. The number in the box indicates the quantity of devices to be used in mixing in the same column of the table. (the number 3 indicates for example 2 Flobull 2cv and 1 Aquasub 3cv for 30,000m3 of water)

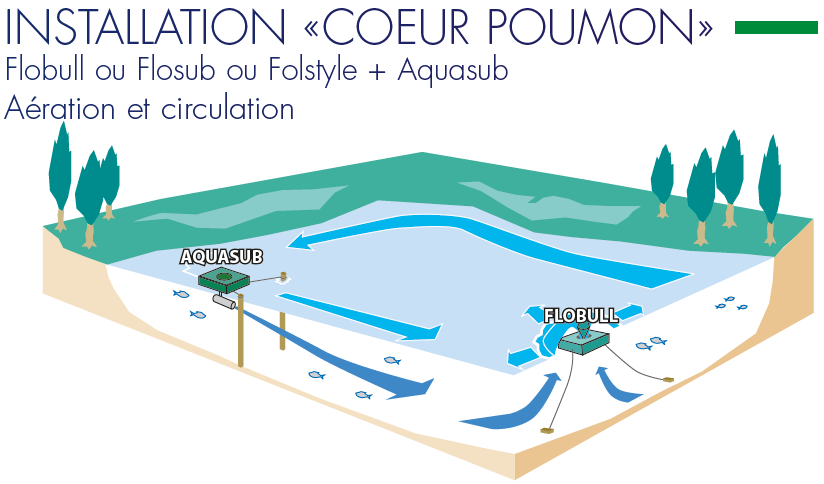

“HEART LUNG” INSTALLATION

The diagram above represents the typical installation for a body of water of approximately 5000m3.

Our equipment is delivered with submersible cable, and must be connected to a 30 mA differential.

1/ An AQUASUB 2cv hydro-ejector which injects oxygen into the powerful current created. It is installed on a cable stretched between two piles or between the banks.

2/ A FLOBULL 2cv aerator to re-oxygenate the water like a lung. The oxygenated water is better distributed in the body of water thanks to the current generated by AQUASUB.
